Setting up a home network often involves little more than plugging a device into a wall outlet and hoping for the best. Most users ignore the instruction manual, leaving the router in a corner and assuming the signal strength is adequate. This casual approach can lead to dead zones and slow speeds, even when the internet plan supports much faster data transfer. The actual performance of a wireless network relies heavily on two specific factors: physical placement and antenna orientation. Correct positioning of router antennas determines the shape and reach of the signal, directly impacting coverage range and stability throughout the home.
Understanding Signal Direction
Most router antennas are omnidirectional, broadcasting in a circle around the device. The signal strength is strongest perpendicular to the antenna’s orientation, not along it. A vertical antenna pushes signal outward horizontally, covering the floor it sits on, while a horizontal antenna radiates both upward and downward. This physical behavior means that a simple change in angle can fill in gaps that a single directional setup leaves behind. Modern dual-band routers operate on 2.4 GHz and 5 GHz frequencies simultaneously. The lower frequency offers longer range and better wall penetration, whereas the higher frequency provides faster speeds but covers a smaller area. Newer tri-band models add a 6 GHz band, which offers massive speed boosts but struggles to pass through solid obstructions compared to the lower bands.
Related: Anthropic’s Claude Reflect Dashboard Helps Users Log Off and Work Smarter (2026 Guide)

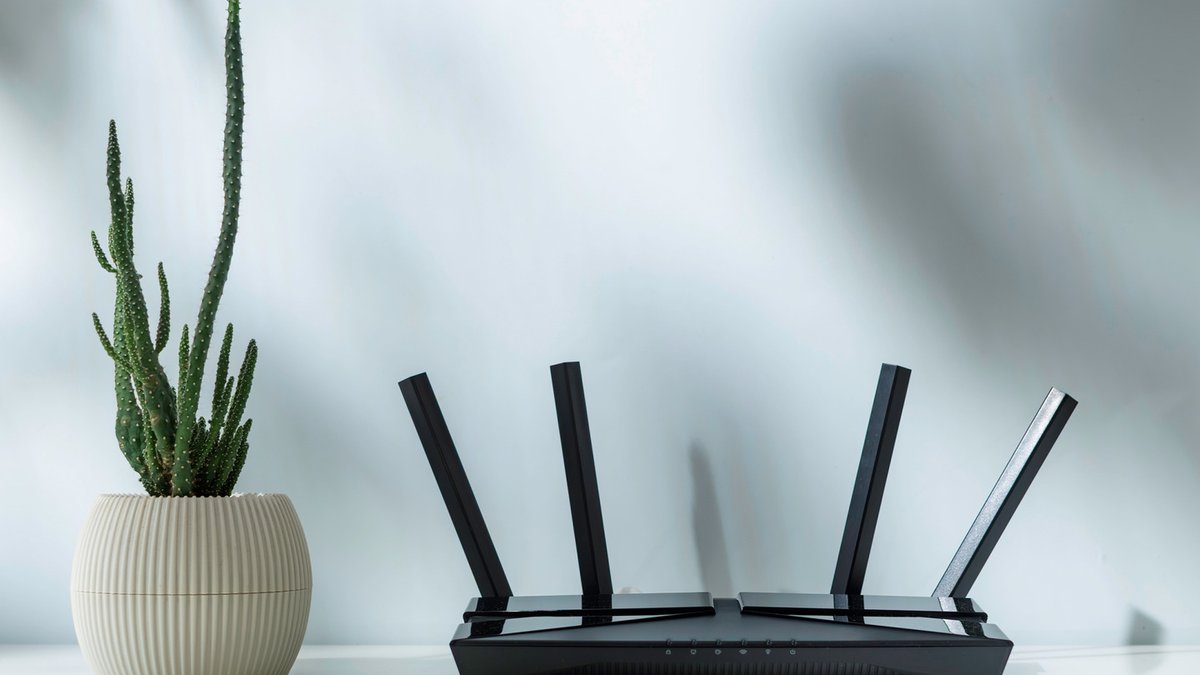

For a single-floor home or an apartment, pointing all antennas straight up creates the most effective horizontal coverage. This setup radiates the signal outward, ensuring the entire floor receives a connection. Homes with multiple floors require a different approach because vertical antennas alone waste signal on the floor above and below. To address this, TP-Link suggests angling at least one antenna at a 30-degree tilt. This slight rotation spreads the signal sideways and vertically, bridging the gap between levels. The goal is to mix antenna orientations to fill in the gaps left by a single directional setup.
As long as the configuration matches the shape of the home, dead zones become less of an issue. The way these adjustments work in a real-world setting can be surprisingly noticeable. A homeowner with a two-story house might find that their upstairs bedroom, which previously required a signal booster to maintain a connection, suddenly streams video smoothly after adjusting the router’s antennas. This improvement happens because the angled signal now reaches the upper levels effectively, eliminating the reliance on wireless repeaters or mesh nodes that might otherwise introduce latency. It transforms a network that feels like a patchwork of connections into a cohesive system.
Optimizing Router Placement
Even the best antenna positioning cannot overcome a poor physical location. A router should sit in a central location to prevent half its signal from broadcasting into an empty hallway or outside the home. Height is also a critical variable; TP-Link recommends placing the device about one to 1.5 feet off the ground. This elevation aligns the signal with the devices most likely to be used, such as laptops and phones. However, proximity to interference sources can negate these benefits. Metal objects, thick concrete walls, and electronic devices like microwave ovens or fish tanks all disrupt the radio waves.
Related: Meta to disable camera when recording LED tampered
Finding a spot that balances central positioning with distance from these obstructions is the final step in maximizing network performance. The physical location of the device often dictates how well the network handles external factors. For example, placing a router near a window can sometimes help, but interference from outside networks remains a constant challenge. The placement of the device relative to the user’s environment ultimately dictates the stability of the connection.
Modern routers often include software tools to help users visualize these areas. If a user struggles to find the optimal spot, they might look into software that helps analyze signal strength. This type of software can provide detailed insights into how the environment affects the wireless signal. Such tools are essential for anyone trying to get the most out of their home network setup.
